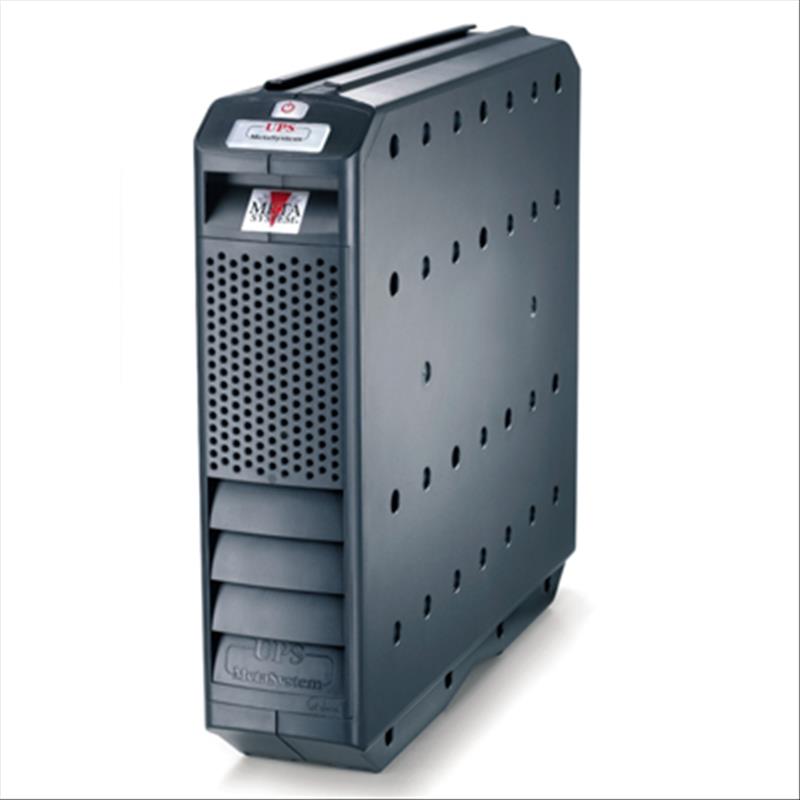

UPS Whad 1500 XL Uninterruptible Power Supply

Description

The WHAD UPS UPS is characterized not only by the advanced technology applied but also by the following features
for the careful and innovative design. Thanks to the extremely small footprint and the long, narrow and slender shape
occupies very little space if placed under the worktop and is very pleasant if placed in visible positions.

But WHAD is much more! It's a true online double conversion UPS (VFI) that combines
to the performance of high-end UPS a very small footprint and a very affordable price.

The power output, 1500VA, allows a high level of electrical protection for equipment
with not too high consumption.

The technology made in Italy by MetaSystem applied to
WHAD allows to optimize production processes, reducing time and costs and increasing the reliability of the product.

The UPS consists of a single board that combines power and control logic - control - diagnostics.
WHAD is extremely versatile and can be used in the protection of small networks, servers, voice systems/
data, office automation, networking, but also industrial automation, security, surveillance

General Features
Conventional single-phase UPS in 3 types depending on the power
Power from 800 to 6000VA
On-line double conversion VFI-SS-111
High standard autonomy
RS232 communication port
LAN / SNMP connectivity
Leads to logical levels (2000 and 2500 models only)
Expandable autonomy with additional battery cabinet
Compact size and reduced foot print
Functions
Frequency converter fin 40-70Hz fout 50/60Hz (selectable)
Operation with generator set
Eco Mode
Load waiting mode
Output voltage adjustable in 1V steps (205÷245V)
Event log complete with date and time
Global historical data
Color-coded UPS status indicator light
Logic level port for relay interface connection
Slot for inserting SNMP , CS121 SK and CS121B SK communication interfaces (cards)
Possibility of connection to the bypass device.
